Wet dust removal
datetime:2019-12-11   Hits:750
Product description


Equipment introduction:
       The wet dust collector GST series has high efficiency in dust removal method, simple structure of dust collector, low cost, small footprint, convenient operation and maintenance, especially suitable for handling high temperature, high humidity, flammable and explosive dusty gas. In addition, while removing dust, some gaseous pollutants can also be removed. Therefore, it is widely used in air pollution control and gas purification in various sectors of industrial production, especially for dust collection and purification of fire and explosion protection.
Equipment structure:
The vertical GST series contains the following components:
1、The main part contains: import and export, filter room, pool, fan, water pump, chimney, control system
2、Other auxiliary systems: observation windows, filling materials, differential pressure meters, etc .;
Features:
1、High safety-during normal operation, the equipment will not generate open flames and will not form explosive conditions.
2、Small footprint-vertical design greatly reduces the volume and footprint of the dust collector.
3、Low operating costs-low operating resistance, extremely low energy consumption and operating costs. Usually the initial resistance is 40mm water column, and the normal running resistance is 50 ~ 75mm water column.
4、Design science—maintenance and cleaning are simpler, faster, safer, and greatly reduce downtime.
working principle:
       Wet dust removal is a method in which the washing liquid (usually water) is brought into full contact with the dust-containing gas, and the dust particles are washed to purify the gas. The high-pressure nozzle and high-efficiency filling material are installed in the circulating spray system, so that the spray liquid can reach the atomization state. When the spray water contacts the dust-containing gas, the absorbable dust in the gas is dissolved in the liquid, which will form gas and solid. Mix liquid. However, due to the solid-liquid separator installed in the tower, most of the large solid particles were collected and the spray water was circulated again. As time goes on and the absorbent concentration in the solution increases, the absorption rate will continue to slow down. Therefore, it is necessary to replace the spray liquid at this time, so that the dust-containing exhaust gas is combined with the fresh spray liquid, which is more conducive to the absorption of the dust-containing exhaust gas and achieves the best treatment effect.

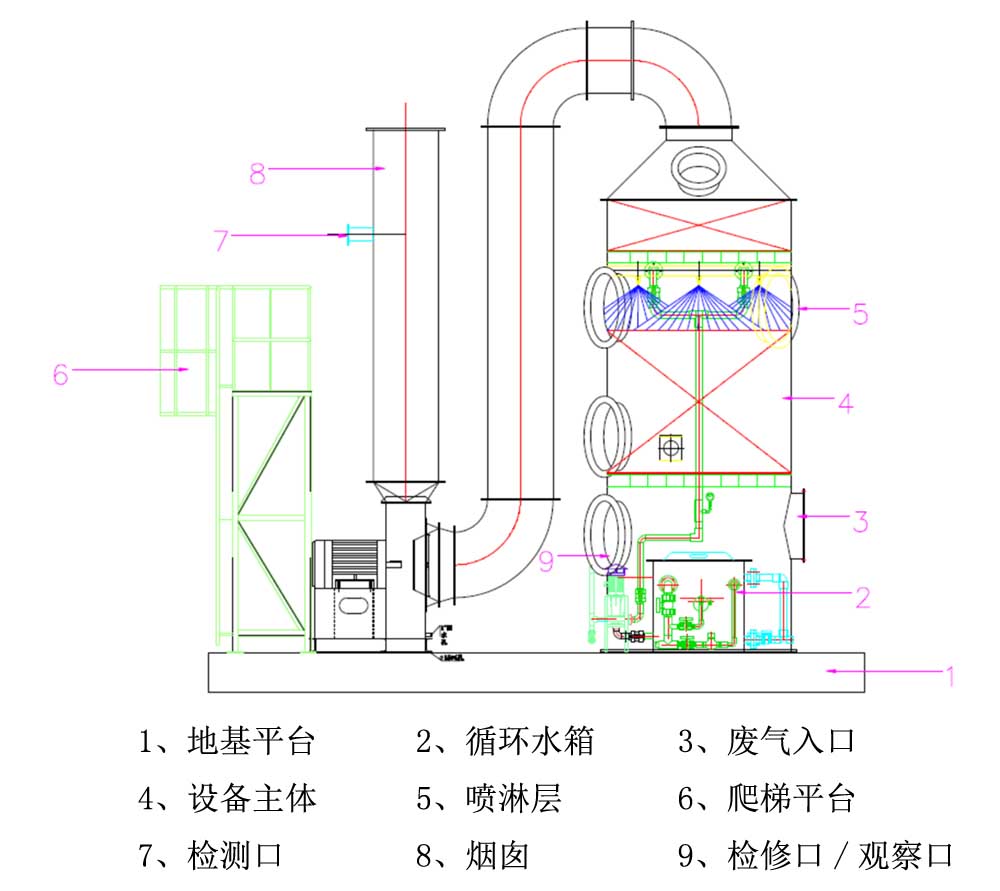

Equipment structure diagram:

Wet dust removal
datetime:2019-12-11   Hits:750
Product description


Equipment introduction:
       The wet dust collector GST series has high efficiency in dust removal method, simple structure of dust collector, low cost, small footprint, convenient operation and maintenance, especially suitable for handling high temperature, high humidity, flammable and explosive dusty gas. In addition, while removing dust, some gaseous pollutants can also be removed. Therefore, it is widely used in air pollution control and gas purification in various sectors of industrial production, especially for dust collection and purification of fire and explosion protection.
Equipment structure:
The vertical GST series contains the following components:
1、The main part contains: import and export, filter room, pool, fan, water pump, chimney, control system
2、Other auxiliary systems: observation windows, filling materials, differential pressure meters, etc .;
Features:
1、High safety-during normal operation, the equipment will not generate open flames and will not form explosive conditions.
2、Small footprint-vertical design greatly reduces the volume and footprint of the dust collector.
3、Low operating costs-low operating resistance, extremely low energy consumption and operating costs. Usually the initial resistance is 40mm water column, and the normal running resistance is 50 ~ 75mm water column.
4、Design science—maintenance and cleaning are simpler, faster, safer, and greatly reduce downtime.
working principle:
       Wet dust removal is a method in which the washing liquid (usually water) is brought into full contact with the dust-containing gas, and the dust particles are washed to purify the gas. The high-pressure nozzle and high-efficiency filling material are installed in the circulating spray system, so that the spray liquid can reach the atomization state. When the spray water contacts the dust-containing gas, the absorbable dust in the gas is dissolved in the liquid, which will form gas and solid. Mix liquid. However, due to the solid-liquid separator installed in the tower, most of the large solid particles were collected and the spray water was circulated again. As time goes on and the absorbent concentration in the solution increases, the absorption rate will continue to slow down. Therefore, it is necessary to replace the spray liquid at this time, so that the dust-containing exhaust gas is combined with the fresh spray liquid, which is more conducive to the absorption of the dust-containing exhaust gas and achieves the best treatment effect.
Equipment structure diagram:
